Aimpoint CompM5 Review: Is Military-Grade Worth the Price?

Reading time: 8 mins

If you’re looking into the Aimpoint CompM5, you already know it’s not a cheap optic. So let’s answer the real question first: is it worth the money?

Short answer: yes, if you want an optic built for years of dependable service. It’s not the right pick if you just want something light for the range.

This review breaks down what the CompM5 actually is, how it holds up in the real world, and how it compares to its own Aimpoint red dot siblings and the competition.

Highlights

• The Aimpoint CompM5 is a compact, AAA-powered red dot built for military, law enforcement, and duty use.
• It runs up to 50,000 hours, over five years, on a single AAA battery.
• The CompM5, CompM5s, and CompM5b share the same core optic but differ in battery position and turret features.
• It’s lighter than the older CompM4 while keeping the same rugged build quality.

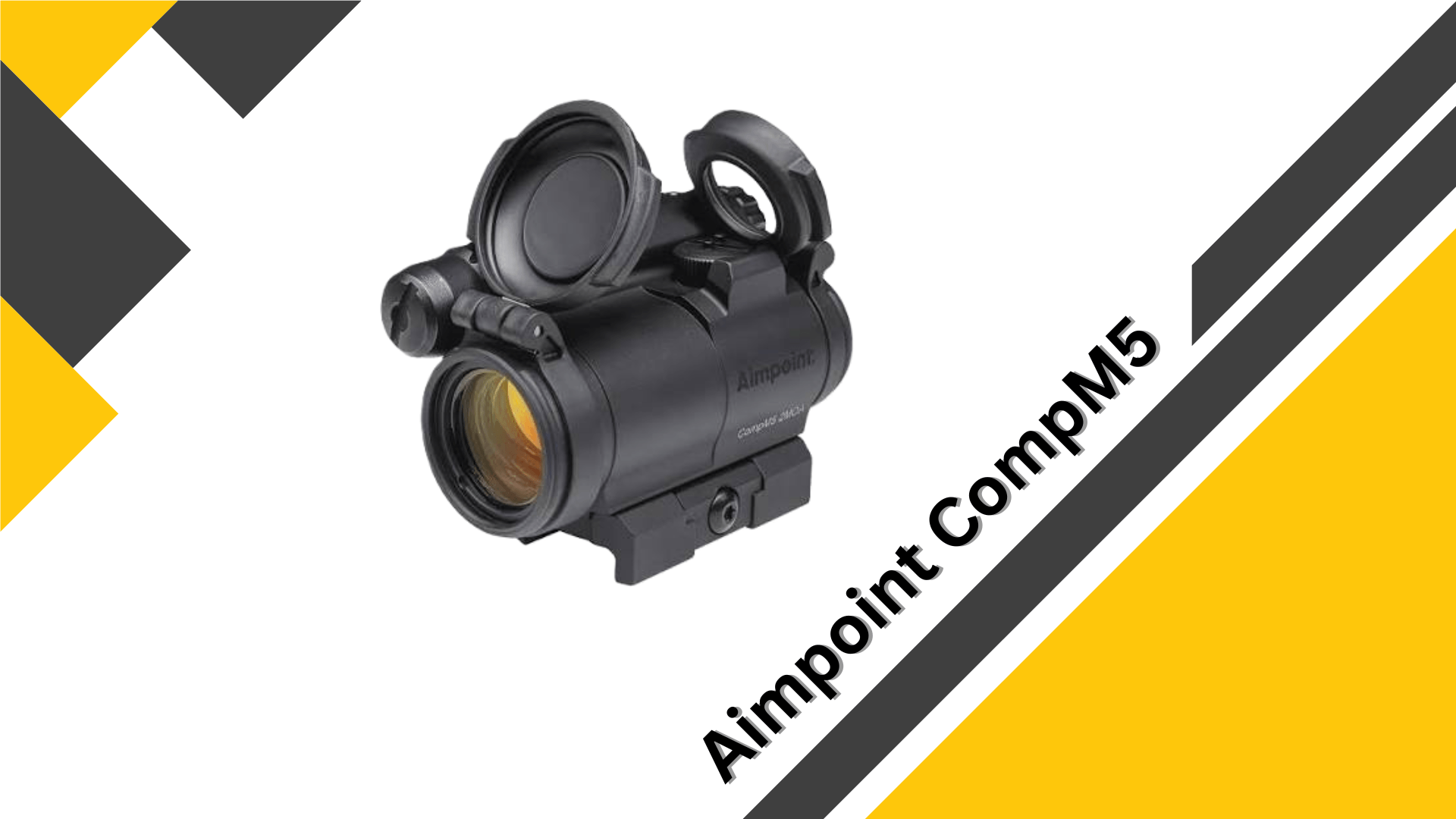

What Is the Aimpoint CompM5?

The Aimpoint CompM5 is a compact red dot sight built for people who need their optic to work every time they pick up the gun. It runs on a single AAA battery, and it’s built to survive hard use, water, and extreme temperatures.

Aimpoint designed the CompM5 as a smaller, lighter option next to its combat-proven CompM4 line. It’s not a replacement for the CompM4; it’s a lighter alternative built to the same rugged standard.

One smart choice here is the battery. AAA is one of the most widely stocked battery sizes anywhere, unlike the CR123A cells some competing optics rely on.

This optic is aimed at military units, law enforcement, and civilians who want a duty-ready rifle or home-defense setup, not competition shooters chasing the biggest sight window or an ultralight build.

Aimpoint CompM5 Specs at a Glance

Here’s what you’re actually getting with the CompM5:

• Dot size: 2 MOA
• Battery: One AAA (alkaline or lithium)
• Battery life: 50,000 hours at setting 7; over a year at setting 8; over 10 years on night vision settings
• Brightness settings: 10 total, 4 night-vision compatible and 6 daylight
• Submersion rating: Rated to 45 meters, roughly 150 feet
• Temperature range: −45°C to +71°C, or −49°F to +160°F
• Weight: About 5.2 oz sight-only, closer to 8.4 oz with the standard mount attached
• Mount system: Quick-release LRP mount with a 30mm or 39mm spacer

A quick note on that last spec: the CompM5 doesn’t use an old-school 30mm tube body like Aimpoint’s earlier Comp-series sights. It uses Aimpoint’s compact Micro-style housing, and the “30mm” you’ll sometimes see in listings is an optional spacer height, not the tube itself.

Weight is another spec that trips people up. Some listings quote the 5.2 oz “sight only” figure; others quote 8.4 oz for the “standard configuration,” so double-check which one you’re actually comparing.

Hands-On: How the Aimpoint CompM5 Actually Performs

Dot Clarity and Glass Quality

The 2 MOA dot on the CompM5 is small, crisp, and easy to pick up fast in daylight. It holds steady in low light, too, staying a clean circle instead of smearing into a fuzzy blob the way some budget optics do.

Because it’s considered “parallax-free,” you don’t have to center the dot perfectly in the window to hit your target. That makes it a natural fit for shooting with both eyes open, which speeds up how fast you can shift between targets.

Mounting and Zero

Getting the CompM5 zeroed is refreshingly simple. Since the included spacer sets the optic at a standard AR co-witness height, you can rough in your zero just by aligning the dot with your existing irons, then confirm with a shot or two on paper.

The quick-release LRP mount also makes it easy to pull the optic and remount it later without losing zero. If you’re mounting it yourself, follow the torque spec in your manual, generally around 3 Nm, and stop as soon as you feel resistance.

Durability in the Real World

Aimpoint builds the CompM5 to handle serious shock, vibration, temperature swings, and full submersion. Those aren’t just marketing numbers either; they’re the tolerances that helped convince France’s defense procurement agency to order well over 100,000 units for front-line rifles.

That said, no optic is completely indestructible, and treating any red dot with reasonable care is just good sense. For everyday duty or home-defense use, the CompM5’s build quality is a clear step above budget optics.

Battery Life and the AAA Decision

At a duty-friendly brightness setting, you’re looking at over five years of continuous runtime on one battery. Even on night vision settings, that number stretches past 10 years.

That kind of runtime means you can mount it, zero it, and basically forget about it. Combined with how easy AAA batteries are to find, it’s a genuinely practical setup for a gun you might need to grab in an emergency.

Aimpoint CompM5 vs. CompM5s vs. CompM5b: What’s Actually Different

These three optics share the same core dot, battery type, and durability rating. The differences come down to battery position and, for one model, extra adjustment features.

• CompM5: Standard version with a high battery compartment. A solid value pick for duty use.
• CompM5s: Same optic with a low battery compartment for a cleaner sight picture. It runs slightly heavier, a small trade-off for the improved profile.
• CompM5b: Adds finger-adjustable, caliber-specific ballistic turrets for compensating bullet drop at distance. Better suited to precision-focused shooters than general duty use.

If you want a reliable, no-frills duty optic, the base CompM5 is the smart buy. If a cleaner peripheral view matters to you, step up to the CompM5s. If you regularly engage targets at varying distances, the CompM5b earns its keep.

Aimpoint CompM5 vs. CompM4: A Smaller Alternative, Not a Replacement

It’s easy to assume the CompM5 replaced the CompM4, but that’s not quite right. The CompM4 and CompM4s remain in active production, and the CompM4s is still the U.S. military’s officially designated M68 Close Combat Optic, a role it’s held since a major 2009 Army contract.

The CompM5 offers a lighter, more compact alternative built to a comparable standard. At around 5.2 ounces sight-only, it’s noticeably lighter than the CompM4, trading the CompM4’s AA battery for a smaller AAA cell.

Think of it less as “old versus new” and more as “which size fits your build.” Duty teams already running the CompM4 don’t need to swap it out; builders looking for something lighter now have the CompM5 as a genuine alternative.

Aimpoint CompM5 vs. the Competition

The CompM5 isn’t the only rugged optic out there, so here’s how it stacks up against a few common alternatives.

• Aimpoint CompM5 vs. Trijicon MRO: The MRO uses a larger 25mm objective lens for a wider field of view, while the CompM5 stays smaller and more compact for a tighter mounting profile.
• Aimpoint CompM5 vs. EOTech EXPS3: EOTech’s holographic window is bigger, but its CR123A battery only lasts around 600 hours at typical brightness, a fraction of the CompM5’s 50,000-hour life. France made this exact trade in 2018, dropping its EOTech 552 holographic sights for the CompM5 on the new HK416F service rifle.
• Aimpoint CompM5 vs. Holosun’s duty-class optics: Some Holosun models add solar backup and cost less, trading some of Aimpoint’s decades-long combat track record for savings.

None of these are “bad” optics. It comes down to what you’re willing to trade for weight, window size, price, or battery life.

Who Should (and Shouldn’t) Buy the Aimpoint CompM5

This optic makes sense for a specific type of buyer.

Buy it if:

• You’re building a duty rifle, patrol carbine, or home-defense AR.
• You want night-vision compatibility built in.
• You’d rather buy one optic and never think about it again.

Look elsewhere if:

• You’re a competition shooter who wants the biggest possible sight window.
• You’re building a budget range gun that doesn’t need duty-grade durability.
• Weight savings matter more to you than long-term ruggedness.

Aimpoint CompM5 Price: Is It Worth the Cost?

Retail listings for the CompM5 typically run $800 to $1,000 depending on mount configuration, and pricing shifts often enough that you should confirm current numbers before buying.

That price tag covers rigorous shock and submersion testing, a battery that runs over five years without a swap, and build quality trusted enough for front-line military contracts. It’s also the kind of optic that tends to hold its resale value reasonably well, which softens the upfront cost over time.

Is it expensive for an unmagnified red dot? Yes, honestly. But if you’re buying an optic you plan to depend on for years, not months, the cost makes a lot more sense.

Frequently Asked Questions

Is the Aimpoint CompM5 worth the money?

For duty, home defense, or a “buy once” mindset, yes. For a budget range gun, you can get similar daytime performance for less elsewhere.

What’s the difference between the CompM5 and CompM5s?

The CompM5s moves the battery compartment lower for a cleaner sight picture and weighs slightly more as a result.

What battery does the CompM5 use, and how long does it last?

One AAA battery, rated for over 50,000 hours at a standard duty setting.

Is the Aimpoint CompM5 waterproof?

It’s rated to roughly 150 feet of submersion, so rain, mud, and full dunking won’t take it out of action.

Does it co-witness with iron sights out of the box?

Yes, the included 39mm spacer sets it to a standard AR co-witness height.

Is it night-vision compatible?

Yes, with four dedicated night-vision settings alongside six daylight settings.

How does the CompM5 compare to the CompM4?

It’s smaller, lighter, and runs on AAA instead of AA. The CompM4 remains the currently type-classified military M68 optic, so think of the CompM5 as a lighter sibling, not a full replacement.

Conclusion

The Aimpoint CompM5 earns its price tag through years of dependable runtime, a genuinely tough build, and a crisp 2 MOA dot that works in daylight or through night vision. It’s not trying to be the lightest or the cheapest option out there.

If you’re building a duty rifle, a home-defense AR, or any gun you need to trust without question, the CompM5 is a smart long-term investment. Just match the right variant, base CompM5, low-profile CompM5s, or ballistic-turret CompM5b, to how you actually plan to use it.
